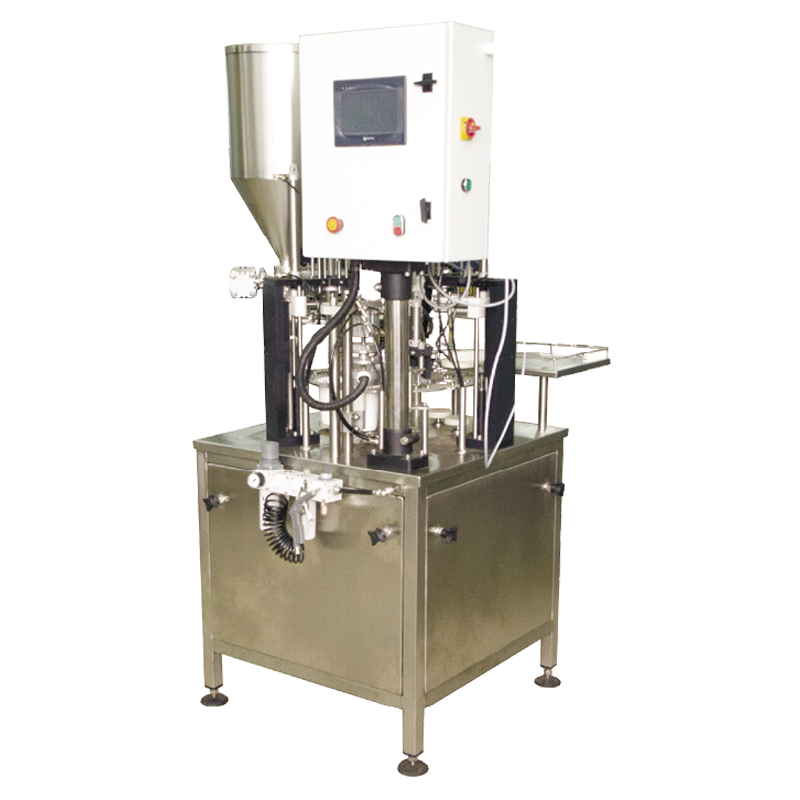

The machine is designed for the filling of liquid and paste-like products in plastic cups and containers of various shapes with sealing of pre-cut aluminum foil lids and capping with a plastic lid.
Range of filling products: yogurt (also with pieces of fruits), sour cream, milk, cream, mayonnaise, fresh cheese, processed cheese, butter, quark, jam, composite products.
Output with product:
Pneumatic drive – up to 1500 doses/hour
Electromechanical drive – up to 1800 doses/hour
Servo drive – up to 2000 doses/hour
Dimensions: 900*850*1800 mm
Weight: 230 kg
Power supply: 220-240V, 50 Hz
Power consumption: 1.2 kW
Air-pressure: 0.6 MPa
Сompressed air consumption: no more 250-300 liters / min
Additional filler for two products in one cup
Set to another size of cups
Heated hopper with auger up to 120 l
Closing by plastic lids
Reliability
Easy maintenance
High quality sealing of pre-cut lids (tubular coiled heating element)
Vacuum-compensator (to prevent swelling of aluminium lids)
Fast change over of set to another size of cups
