The machine is designed for filling of liquid and pasty products in plastic cups from 100 to 500 ml. with sealing by pre-cut aluminum foil lid or by film from the roll. Also pick and place and  closure of plastic overcap.

Four-lane linear cup filling and sealing machine

Technical data

Output up to 8000 cups/ hour
Power supply: 380V ~ 50 Hz
Power usage (max): up to 15 kW
Air-pressure: 0.6 Mpa
Pneumatic equipment: Camozzi
Net weight: 2500 kg
Methods of dosing: volumetric piston filler
Filling accuracy:+/-2%

Options

Connection to CIP
Cleanup system
Local washing station
Laminar-airflow-cabin
Remote automatic adjustment of the dose

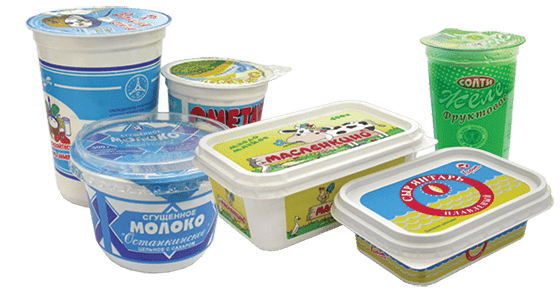

Cups
