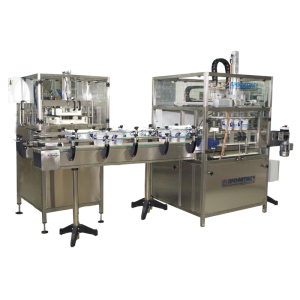

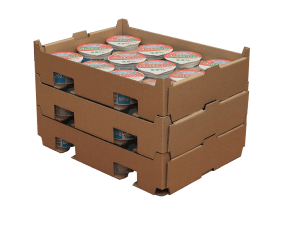

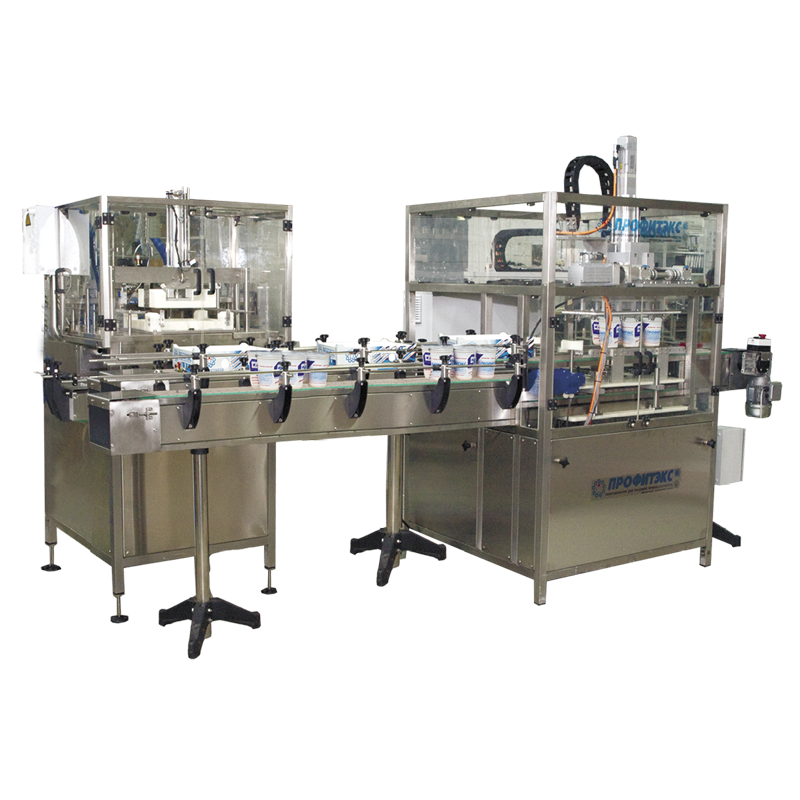

Machine to collate container before placing them into tray. Gripper system pick up filled container from the conveyor and puts the container into the carton tray. Then the tray with product going from conveyer to palletizer.
Technical data
Output up to 1500 trays/hour
Dimensions (without conveyors):6000*1000*2500 mm
Weight: 650 kg
Power supply: 220-240V, 50 Hz
Power consumption: 1.2 kW
Air-pressure: 0,6 MPa
Сompressed air consumption: 350 liters/min
